| MODEL P / N | SERI | JUMLAH LABORATORIUM/CLBS | TINGKAT KECEPATAN | JUMLAH ELEMEN / SEL LOGIKA | TOTAL BIT RAM | JUMLAH I / O | TEGANGAN - PASOKAN | JENIS PEMASANGAN | SUHU PENGOPERASIAN | PAKET / KASUS | PAKET PERANGKAT PEMASOK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XCKU3P-1FFVB676C | Kintex® UltraScale+ | 20,34 | -1,00 | 355.950 LE | 31.641.600 bit | 272 | 0.850 V | Pemasangan di Permukaan | -40 ° C - 100 ° C | FCBGA-676 | 676-FCBGA (27×27) |

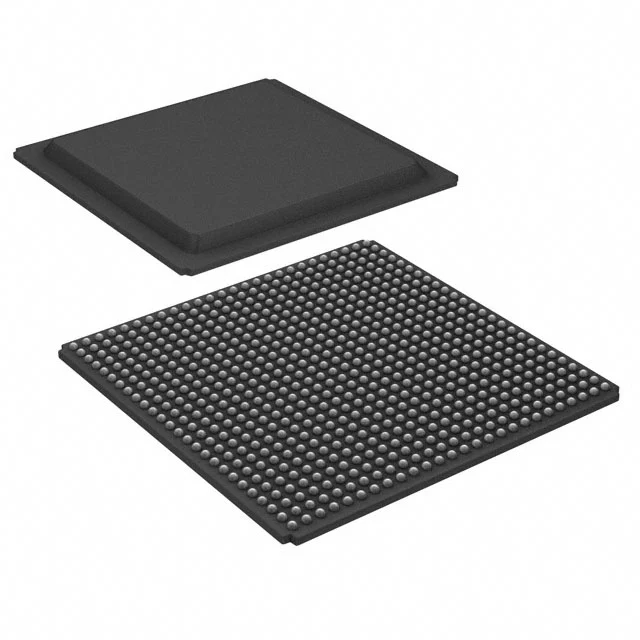

XCKU3P-1FFVB676C
Produsen: Xilinx
Sel Logika: 3,780,000
Irisan Logika: 590,000
RAM tertanam (eRAM): 81.360 Kb (2.260 × 36 Kb Blok RAM)
I/O Pengguna Maksimum: 350
Paket: FFVB676 (Flip-Chip BGA)
Tingkat Kecepatan: -1
Suhu Pengoperasian: Komersial (0°C hingga +85°C)
Spesifikasi
Part Number Breakdown
This is Xilinx Kintex UltraScale+ series FPGA manufactured on 16nm FinFET process, equipped with built-in UltraRAM large-capacity on-chip memory, positioned for cost-sensitive commercial embedded high-speed logic and data processing applications.
- XCKU3P: Entry-level chip of Kintex UltraScale+ P variant family
- -1: Speed Grade 1, the slowest timing grade for this device, optimized for cost reduction rather than high-frequency operation
- FFVB676: Kemasan FCBGA flip-chip kompak dengan 676 bola
- C: Commercial temperature grade, junction temperature range: 0°C ~ +85°C
Sumber Daya Perangkat Keras Terintegrasi
Logic & DSP Resources
- Jumlah Sel Logika: 221.280
- DSP48E2 dedicated arithmetic blocks: 1128 units
Suitable for digital filtering, FFT calculation, low-speed wireless baseband processing, basic image algorithm acceleration and small matrix computing tasks
Memori Tertanam
- Total RAM Blok: 14,5 Mb
- Dedicated UltraRAM memory: 13.5 Mb, used for video frame buffers, deep data buffering and intermediate storage of large algorithms
- LUT-implemented distributed RAM for ultra-low latency tiny temporary cache
Clock Management Subsystem
Multiple MMCM and PLL clock management tiles are integrated. Functions include clock multiplication, division, arbitrary phase adjustment and jitter suppression to meet timing requirements of multi-clock digital systems.
Transceiver Berkecepatan Tinggi & I/O Umum
- 8 GTH high-speed serial transceivers, maximum per-lane rate up to 16.375 Gbps
Protokol yang didukung: PCIe Gen3, 10G Ethernet, JESD204B/C, Aurora
- Usable user I/O pins: 280
Adopts HR wide-voltage I/O banks and HP high-performance I/O banks, compatible with LVCMOS, LVDS, HSTL, SSTL and all mainstream differential signaling standards
- Onboard SYSMON system monitor: Real-time monitoring of chip internal temperature, power supply voltages and external analog input signals
Spesifikasi Catu Daya
Nominal core operating voltage: 0.85 V
Independent power domains are configured for core logic, memory modules, transceivers and I/O interfaces. Dynamic voltage and frequency scaling can be enabled to decrease power consumption under light load conditions.
Typical overall power consumption: 9W ~ 28W, passive heat dissipation works well for compact commercial embedded devices
Packaging & SMT Assembly Rules
- Kemasan: FCBGA (Ball Grid Array) tipe flip-chip 676-pin
- Moisture Sensitivity Level: MSL3; reflow soldering must be completed within 168 hours after vacuum packaging is opened
- Lead-free design, fully compliant with RoHS standards
- Delivered in anti-static trays for automated PCB mass production
Karakteristik Lingkungan & Keandalan
Only applicable to indoor stable commercial ambient environments, unable to adapt to outdoor extreme temperature industrial scenarios.
It supports 256-bit AES bitstream encryption for IP protection, SEU single-event upset error correction and partial dynamic reconfiguration, offering stable performance for indoor test instruments, commercial vision equipment and desktop data acquisition devices.
Skenario Aplikasi Umum
- Indoor small cell communication equipment, compact network forwarding and gateway modules
- Desktop laboratory multi-channel image acquisition and simple visual inspection platforms
- Bench signal analyzers, portable laboratory measuring instruments and multi-channel data recorders
- Low-cost PCIe high-speed acquisition cards and algorithm prototype verification boards
- Commercial video real-time processing, multi-channel video decoding and playback terminals
- Custom embedded core boards for secondary development in commercial electronic products
