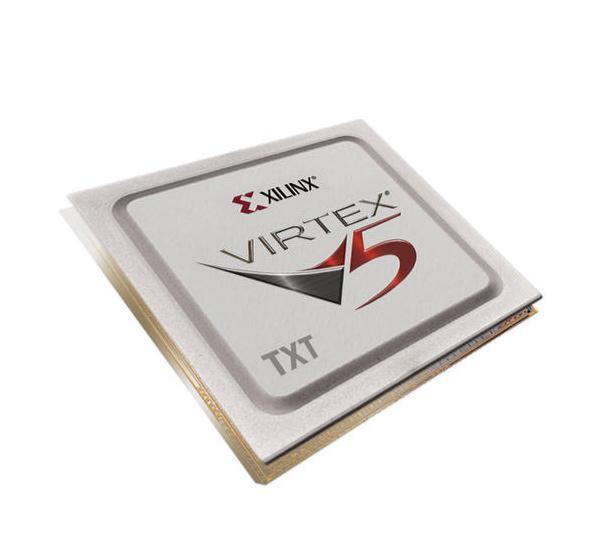

XC5VSX240T-1FF1738C
Manufacturer: Xilinx
Logic Cells: 239,616
Logic Slices: 37,440
Embedded RAM (eRAM): 10,368 Kb (576 × 18Kb Block RAM)
Maximum User I/O: 720
Package: FF1738 (Flip-Chip BGA)
Speed Grade: -1
Operating Temperature: Commercial (0°C to +85°C)
Specifications
XC5VSX240T-1FF1738C
Virtex-5 SX FPGA – Product Overview
The XC5VSX240T-1FF1738C is a high-performance FPGA from the Virtex-5 SX family developed by Xilinx.
This device is optimized for applications that require strong digital signal processing capability combined with flexible programmable logic.
Virtex-5 SX devices integrate a large number of DSP48E slices and embedded memory resources, enabling engineers to implement complex signal-processing algorithms directly in hardware. The FF1738 package provides high pin density, making the device suitable for systems that require extensive I/O connectivity.
With its balanced architecture, the XC5VSX240T series is commonly used in communication infrastructure, radar processing platforms, and high-speed data acquisition systems.
Key Features
-
Virtex-5 SX FPGA architecture
-
High-density programmable logic resources
-
Integrated DSP48E processing slices
-
Embedded Block RAM memory
-
High-pin-count FF1738 BGA package
-
Optimized for DSP and parallel processing applications
-
Commercial temperature range
Typical Applications
Engineers often use the XC5VSX240T-1FF1738C in systems such as:
-
Wireless communication infrastructure
-
Radar and signal-processing systems
-
Software-defined radio platforms
-
High-speed data acquisition equipment
-
Medical imaging devices
-
Video and broadcast processing systems
-
Industrial signal-processing platforms
Technical Specifications
| Parameter | Description |
|---|---|
| Part Number | XC5VSX240T-1FF1738C |
| FPGA Family | Virtex-5 SX |
| Manufacturer | Xilinx |
| Speed Grade | -1 |
| Package | FF1738 |
| Package Type | BGA |
| Temperature Grade | Commercial |
| DSP Resources | DSP48E slices |
| Embedded Memory | Block RAM |
| Process Technology | 65 nm FPGA technology |
Cross Reference / Related Parts
Designers evaluating the XC5VSX240T-1FF1738C may also consider related Virtex-5 SX devices:
-
XC5VSX240T-2FF1738C
-
XC5VSX240T-1FFG1738C
-
XC5VSX95T-1FFG1136C
-
XC5VSX50T-1FFG665C
These parts share similar architecture but may differ in speed grade, package type, or temperature rating.
Availability
LXB Semicon supplies the XC5VSX240T-1FF1738C for customers requiring reliable FPGA sourcing.
Inventory availability may vary depending on global supply conditions.
For stock availability, pricing, or datasheet requests, please contact the LXB Semicon sales team.
Frequently Asked Questions
What is XC5VSX240T-1FF1738C used for?
The XC5VSX240T-1FF1738C is commonly used in high-performance signal-processing systems such as radar equipment, wireless communication infrastructure, and data acquisition platforms.
Which FPGA family does XC5VSX240T belong to?
It belongs to the Virtex-5 SX FPGA family, designed for DSP-intensive processing tasks.
Is XC5VSX240T-1FF1738C still available?
Although the Virtex-5 generation is mature, these devices are still widely used in many industrial and telecom systems. Many distributors continue to supply them for maintenance and production requirements.
