LT3045IDD

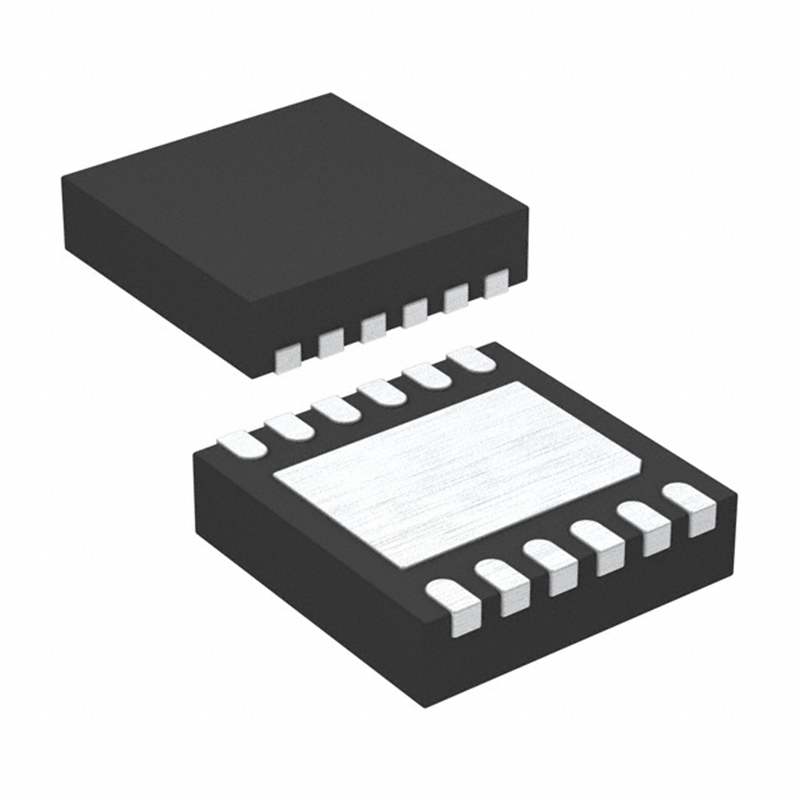

LT3045 is an ultra-low noise, high PSRR low dropout linear regulator with 500mA output current capacity. IDD stands for industrial temperature grade specification and 10-lead 3mm×3mm exposed pad DFN surface mount package. The component is available in tube or tape-and-reel lead-free packaging for prototype debugging and mass automated SMT assembly.

This premium linear voltage regulator adopts a unique architecture combining precision current reference and high-performance voltage buffer, tailored to supply power for noise-sensitive analog, RF and high-precision circuit modules. It supports input voltage ranging from 1.8V to 20V, and output voltage is continuously adjustable from 0V up to 15V via a single external resistor.

The maximum continuous output load current reaches 500mA, with typical dropout voltage maintained at only 260mV under full load condition. Quiescent operating current is 2.2mA under normal working status, while shutdown current decreases to far less than 1μA to minimize idle power consumption for battery-powered devices.

It delivers outstanding noise suppression performance: total output noise is 0.8μV RMS within 10Hz to 100kHz bandwidth, and spot noise achieves 2nV/√Hz at 10kHz. The power supply rejection ratio hits 117dB at 120Hz and 76dB at 1MHz, which thoroughly filters input power ripple and high-frequency interference. Output noise, PSRR and load regulation characteristics stay nearly unchanged across the entire adjustable output voltage range.

Multiple practical functional modules are integrated on chip: programmable current limit circuit, fast startup sequence, precision enable pin with undervoltage lockout, and programmable power good indicator for output voltage monitoring. Multiple units can be connected in parallel to further reduce output noise, raise total output current and distribute heat evenly on printed circuit boards.

Comprehensive safety protection mechanisms are embedded, including reverse battery protection, reverse current prevention, foldback current limiting, and thermal shutdown with hysteresis to avoid chip damage under abnormal working conditions. The regulator remains stable with a minimum 10μF ceramic output capacitor.

Encapsulated in compact 10-pin plastic DFN package with overall dimensions of 3mm × 3mm, equipped with a bottom exposed thermal pad. The exposed pad greatly improves thermal dissipation efficiency and provides solid grounding connection for high-frequency noise-sensitive circuits. Moisture Sensitivity Level is MSL1, so there is no time restriction on reflow soldering procedures after the original vacuum packaging is opened. Tube packaging is suitable for manual breadboard testing and small batch trial production, while continuous tape reel feeding matches automatic pick-and-place equipment for large-scale electronic manufacturing.

The operating temperature range covers -40°C to +125°C, enabling stable long-term operation in industrial measurement equipment, RF communication modules, medical diagnostic devices and laboratory precision instruments under wide temperature variation environments. Manufactured with lead-free fabrication processes, the component complies with global RoHS environmental directives. The highly integrated single-chip design simplifies ultra-clean power supply peripheral circuits and effectively enhances signal integrity for precision analog systems.

Power supply circuits for RF front-end modules including LNA, VCO, PLL and frequency mixer

Ultra-low noise power rails for high-speed precision ADC and DAC converters

Laboratory test instruments, oscilloscopes and precision signal generation equipment

Medical imaging and diagnostic electronic device analog power modules

Post-stage noise filtering regulator after switching power supplies

Hi-Fi audio equipment reference power and preamplifier power supply units
