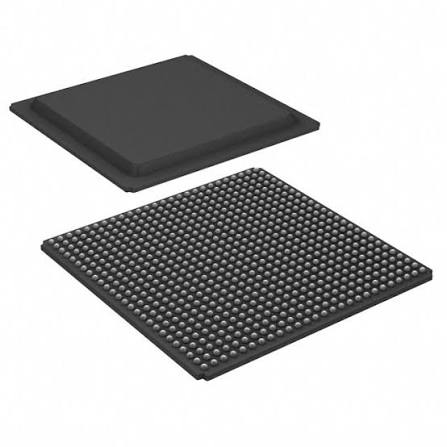

XC7Z045-L2FFG676E

Produsen: Xilinx
Sel Logika: ~53,200 (Low Power Version)
RAM tertanam (eRAM): ~2.2 Mb
Hitungan I/O: ~676 pins
Paket: FFG?676
Suhu Pengoperasian: Komersial (0°C hingga +85°C)

KIRIMKAN PESAN KEPADA KAMI

    Spesifikasi

    MODEL P / N SERI JUMLAH LABORATORIUM/CLBS TINGKAT KECEPATAN JUMLAH ELEMEN / SEL LOGIKA TOTAL BIT RAM JUMLAH I / O TEGANGAN - PASOKAN JENIS PEMASANGAN SUHU PENGOPERASIAN PAKET / KASUS PAKET PERANGKAT PEMASOK
    XC7Z045-L2FFG676E Zynq-7000 SoC 0,00 0,00 350.000 LE 20117760 250 0.97 - 1.03 V Pemasangan di permukaan 0 ° C - 100 ° C FFG-676 / FCBGA-676 676-FCBGA

    Part Number Description

    This is a low-power wide-temperature heterogeneous all-programmable SoC from AMD Xilinx Zynq-7000 family, fabricated on 28nm process technology. It integrates dual-core ARM Cortex-A9 processing subsystem and Kintex-7 large-scale FPGA fabric, tailored for rugged industrial, automotive, portable field and airborne embedded devices that demand low power consumption and wide temperature adaptability.
    1. XC7Z045: Flagship high-capacity model of Zynq-7000 series, equipped with Kintex-grade programmable logic resources
    2. L2: Low-power optimized speed grade 2 (2LI). The core internal voltage is reduced to 0.95V to cut static and dynamic power consumption significantly, while maintaining timing performance equivalent to standard -2 speed grade; the maximum processor frequency is locked at 800MHz under low-power configuration
    3. FFG676: 676-ball flip-chip FCBGA compact package, overall dimension 27mm × 27mm, ball pitch 1.0mm
    4. E: Extended industrial temperature grade, junction temperature operating range: 0°C ~ +100°C

    Complete On-Chip Hardware Architecture

    1. Processing System (PS: ARM Subsystem)

    • Dual-core ARM Cortex-A9 MPCore processor with CoreSight debug architecture, maximum operating frequency 800MHz
    • Each core features independent 32KB instruction L1 cache and 32KB data L1 cache; 1MB shared L2 cache
    • Integrated NEON SIMD floating-point accelerator for digital signal computation, multimedia decoding and algorithm preprocessing
    • On-chip 256KB on-chip memory (OCM); supports external DDR3 memory expansion
    • Rich built-in peripherals: Dual Gigabit Ethernet, USB 2.0 OTG, SD/MMC interface, dual CAN 2.0B controllers, UART, SPI, I2C, general-purpose MIO GPIO
    • Secure boot with 256-bit AES encryption and SHA-256 integrity verification, preventing firmware tampering

    2. Programmable Logic (PL: Kintex-7 FPGA Fabric)

    • Total Logic Cells: 354,560
    • DSP48E1 dedicated arithmetic slices: 1920 units, applicable to large-scale FFT, digital filtering, wireless baseband signal processing, multi-channel image algorithm acceleration and matrix computing tasks
    • Total Block RAM capacity: 19.2 Mb
    • Multiple MMCM and PLL clock management tiles to generate multi-group reference clocks and suppress clock jitter
    • 16 channels of GTX high-speed serial transceivers, maximum line rate up to 6.25Gbps, compatible with PCIe Gen2, CPRI, Aurora serial communication protocols

    3. I/O Interfaces & On-Chip Analog Monitoring Module

    • Available configurable PL user I/O pins: 360
    • I/O bank voltage adjustable between 1.2V and 3.3V, supporting LVCMOS, LVDS, HSTL, SSTL and mainstream differential signal standards
    • Dual-channel 12-bit XADC analog monitor integrated on chip: Real-time monitoring of internal junction temperature, all power supply voltages and external analog input signals

    Spesifikasi Catu Daya

    • Standard core internal voltage: 1.0V
    • Low-power operating voltage: 0.95V, effectively lowering overall power consumption under light and medium workloads
    • Independent isolated power domains are assigned separately for PS processor section and PL FPGA logic section
    • Typical total power consumption: 9W ~ 27W; passive heat sinks can fulfill long-term stable operation requirements for compact battery-powered embedded equipment

    Persyaratan Pengemasan & Perakitan SMT

    • Kemasan: FCBGA (Ball Grid Array) tipe flip-chip 676-pin
    • Moisture Sensitivity Level: MSL3; all reflow soldering processes must be completed within 168 hours after vacuum packaging is opened
    • Lead-free construction, fully compliant with RoHS environmental directives
    • Delivered in anti-static trays for automated PCB mass production

    Environmental & Reliability Performance

    The chip can operate continuously and stably under temperature fluctuations and moderate electromagnetic interference in industrial environments.

    It supports AES bitstream encryption protection and SEU single-event upset error detection, with high reliability for outdoor industrial control equipment, automotive electronic systems, handheld precision measuring instruments and lightweight airborne electronic devices requiring low power consumption and wide-temperature working conditions.

    Skenario Aplikasi Umum

    1. Outdoor rugged industrial motion controllers, field environmental monitoring edge gateway terminals
    2. Vehicular multi-channel data recorders, automotive ADAS auxiliary video preprocessing modules
    3. Handheld portable signal analyzers, field vibration and environmental parameter acquisition instruments
    4. Miniature short-range radar signal preprocessing and peripheral control boards
    5. Portable field industrial machine vision inspection equipment
    6. Extended-temperature industrial low-power SOM core modules and battery-powered embedded algorithm verification platforms
