Especificaciones

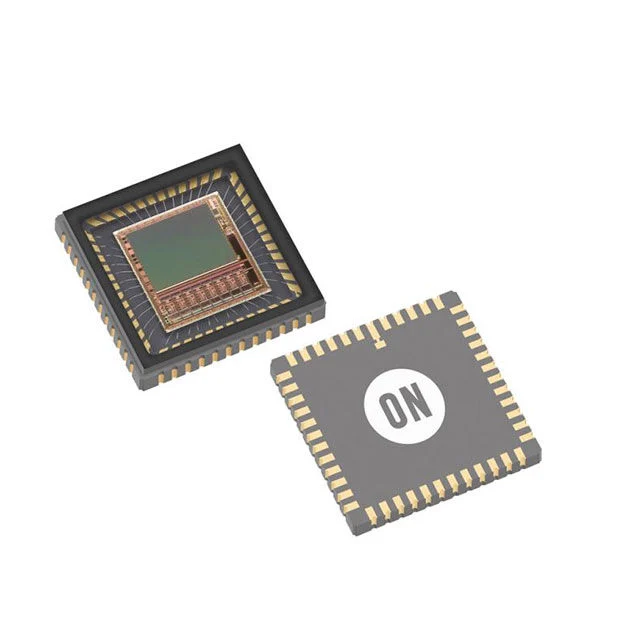

NOIP3SN1300A-QTI is a monochrome global shutter CMOS image sensor belonging to onsemi PYTHON 1300 series, designed for high-speed industrial machine vision and motion capture applications.
Suffix Explanation
- NOIP3SN1300A: Core 1.3MP monochrome global shutter sensor model
- QTI: Tray packaging specification for 48-pin LCC surface mount device
1. Core Optical & Pixel Parameters
- Optical format: 1/2 inch
- Effective pixel array: 1280 horizontal × 1024 vertical (SXGA 1.3 Megapixel)
- Single pixel dimension: 4.8 μm × 4.8 μm with integrated microlens
- Working mode: Fully global shutter, supporting pipelined and external triggered exposure
- Correlated double sampling (CDS) is integrated to suppress read noise and expand dynamic range
- On-chip 10-bit analog-to-digital converter and programmable gain amplifier
- Maximum frame rate under standard configuration: 50 fps; up to 210 fps with region-of-interest cropping and zero rotation mode
- Up to 8 independent region-of-interest windows can be configured via SPI interface to boost readout speed
2. Electrical Power Specifications
- Dual power supply architecture: Core analog/digital domain: 1.7 V ~ 1.9 V, typical 1.8 V I/O interface domain: 3.2 V ~ 3.4 V, typical 3.3 V
- Typical power dissipation under normal operation: 420 mW
- Embedded automatic exposure control loop to adjust integration time and gain without frame artifacts
- Black level can be auto-calibrated or manually offset programmed
3. Data Interface & Control
- Output interface: 2-lane LVDS high-speed differential data transmission
- Single synchronization channel is reserved for frame alignment and data parsing on receiving side
- 4-wire SPI bus for full register configuration of exposure, gain, window and function parameters
4. Package & Mechanical Details
- Package type: 48-pin leadless chip carrier (LCC-48) surface mount
- Overall package dimension: 14.35 mm × 14.35 mm × 2.55 mm maximum thickness
- Sealed D263 protective glass window with surface protective tape
- Standard shipment form: JEDEC tray with 64 units per tray
- Moisture sensitive level MSL3, reflow soldering must be finished within 168 hours after package opening
5. Environmental & Compliance
- Operating temperature range: -40 ℃ to +85 ℃
- Lead-free construction, fully RoHS and REACH compliant
- Optimized for anti-vibration and anti-shock performance to adapt to harsh industrial inspection environments
6. Typical Application Fields
Industrial automated visual inspection and production line defect detection High-speed barcode and QR code scanning equipment Motion tracking, traffic monitoring and security capture devices Robotic vision positioning and automated guided vehicle navigation systems Scientific imaging instrumentation and portable measurement visual acquisition modules
