| MODEL P / N | SERI | JUMLAH LABORATORIUM/CLBS | TINGKAT KECEPATAN | JUMLAH ELEMEN / SEL LOGIKA | TOTAL BIT RAM | JUMLAH I / O | TEGANGAN - PASOKAN | JENIS PEMASANGAN | SUHU PENGOPERASIAN | PAKET / KASUS | PAKET PERANGKAT PEMASOK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XC5VFX200T-2FFG1738I | Virtex-5 FXT | 15.360,00 | -2,00 | 196608 | 16809984 | 960 | 0,95 V-1,05 V | Pemasangan di Permukaan | -40 ° C ~ +100 ° C | 1738-FBGA / FCBGA | 1738-FCBGA (≈42,5 × 42,5 mm) |
XC5VFX200T-2FFG1738I
Produsen: Xilinx
Sel Logika: 207,360
Irisan Logika: 32,640
RAM tertanam (eRAM): 7,380 Kb (410 × 18Kb Block RAM)
Maximum User I/O: 720

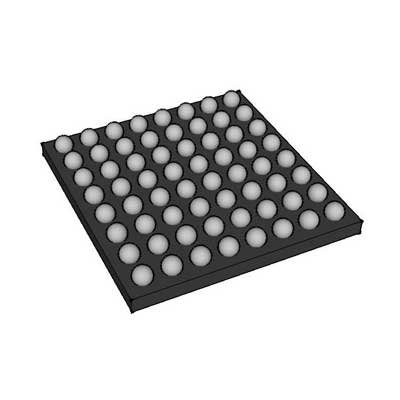

Paket: FFG1738 (Flip-Chip BGA)
Tingkat Kecepatan: -2
Suhu Pengoperasian: Industri (-40°C hingga +100°C)
Spesifikasi
The XC5VFX200T-2FFG1738I is one of the larger devices in the Virtex-5 FXT family from Xilinx (now part of AMD). It’s built on a 65nm process and combines high-density programmable logic with embedded PowerPC 440 processors and RocketIO GTX multi-gigabit transceivers.
From a practical engineering point of view, this device is used when the design simply cannot compromise on logic scale or serial bandwidth. It offers substantial LUT resources, strong DSP capability with DSP48E slices, and large Block RAM capacity — suitable for data-intensive systems such as telecom baseband units, defense electronics, high-speed data acquisition, and complex industrial platforms.
The -2 speed grade provides better timing performance compared to -1 devices, which gives more margin in high-frequency or timing-sensitive designs. The FFG1738 package (1738-ball flip-chip BGA) supports very high I/O count and dense routing, typically seen on multi-layer backplane or high-speed networking boards.
The industrial temperature range (-40°C to +100°C) makes it appropriate for harsher environments where reliability is critical.
In short, the XC5VFX200T-2FFG1738I isn’t chosen for cutting-edge node size — it’s chosen because it’s proven, powerful, and stable. For long-lifecycle systems or performance-heavy legacy platforms, it remains a solid and dependable FPGA solution.
