| MODELO P/N | SERIE | NÚMERO DE LABORATORIOS/CLBS | GRADO DE VELOCIDAD | NÚMERO DE ELEMENTOS LÓGICOS / CELDAS | TOTAL BITS RAM | NÚMERO DE E/S | TENSIÓN - ALIMENTACIÓN | TIPO DE MONTAJE | TEMPERATURA DE FUNCIONAMIENTO | PAQUETE / ESTUCHE | PAQUETE DEL DISPOSITIVO DEL PROVEEDOR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XC5VTX240T-1FFG1759I | Virtex-5 TXT | 18.720,00 | -1,00 | 239616 | 11943936 | 680 | 0,95 V - 1,05 V | Montaje en superficie | -40 °C ~ +100 °C (I) | 1759-BBGA / FCBGA | 1759-FCBGA (≈ 42.5 × 42.5 mm) |

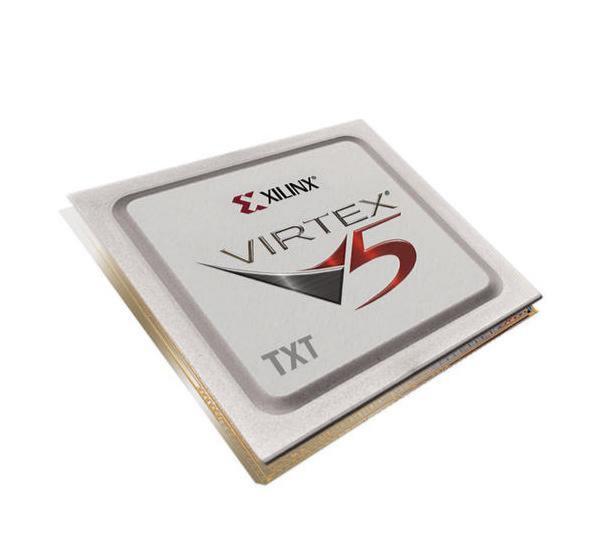

XC5VTX240T-1FFG1759I
Fabricante: Xilinx
Células lógicas: 239,616
Rebanadas lógicas: 37,440
RAM integrada (eRAM): 10,368 Kb (576 × 18Kb Block RAM)
Maximum User I/O: 680
Paquete: FFG1759 (Flip-Chip BGA)
Grado de velocidad: -1
Temperatura de funcionamiento: Industrial (-40°C a +100°C)
Especificaciones
XC5VTX240T-1FFG1759I – Xilinx Virtex-5 FPGA | Specifications, Features, Applications
Overview
En XC5VTX240T-1FFG1759I is a high-performance FPGA from the Xilinx Virtex-5 TXT family, designed for applications that require large logic density together with integrated high-speed serial connectivity.
This device combines a significant amount of programmable logic with embedded DSP resources and multi-gigabit transceivers, making it suitable for data-intensive systems such as telecom infrastructure, high-speed networking equipment, advanced video processing platforms, and industrial computing.
Compared with earlier Virtex generations, the Virtex-5 architecture provides improved performance per watt, faster signal routing, and more flexible clocking resources. Engineers typically choose the XC5VTX240T when they need a device capable of handling complex digital pipelines, high-bandwidth interfaces, and large parallel processing workloads.
En LXB Semicon, the XC5VTX240T-1FFG1759I is commonly supplied for repair, maintenance, and legacy system support where long-term platform stability is required.
Quick Answer
What is XC5VTX240T-1FFG1759I?
En XC5VTX240T-1FFG1759I is a Virtex-5 FPGA from Xilinx featuring approximately 240K logic cells, embedded DSP slices, block RAM, and high-speed serial transceivers.
It is typically used in telecommunications infrastructure, high-speed networking equipment, video processing systems, and industrial computing platforms.
Características principales
Virtex-5 65nm FPGA architecture
Up to ~240K logic cells
Integrated DSP48E slices for high-speed signal processing
Alto rendimiento block RAM resources
Multi-Gigabit Serial Transceivers (MGTs) for high-speed data communication
Advanced clock management tiles
Optimized routing architecture for large designs
FFG1759 package with high I/O count
Industrial temperature version (-1 speed grade, Industrial temp range)
These features make the device capable of handling both compute-heavy logic and high-bandwidth data movement inside the same programmable device.
Aplicaciones típicas
Engineers commonly deploy the XC5VTX240T-1FFG1759I in systems such as:
Telecommunications base stations
Equipos de transmisión óptica
Network packet processing platforms
Video broadcasting systems
Radar y electrónica de defensa
Medical imaging equipment
Industrial data acquisition systems
High-performance embedded computing
The integrated high-speed transceivers allow direct interfacing with standards such as PCIe, XAUI, Serial RapidIO, and high-speed Ethernet links.
Technical Specifications
| Parámetro | Especificación |
|---|---|
| Device Family | Virtex-5 TXT |
| Número de pieza | XC5VTX240T-1FFG1759I |
| Células lógicas | ~240,000 |
| Lonchas DSP | Integrated DSP48E |
| Bloque RAM | Embedded memory blocks |
| Transceptores | Multi-Gigabit |
| Paquete | FFG1759 |
| Grado de velocidad | -1 |
| Temperatura | Industrial |
| Fabricante | Xilinx |
Package Information
En FFG1759 package provides a high pin-count flip-chip BGA layout designed for complex FPGA designs requiring a large number of I/O connections.
This package supports:
High-speed differential signal routing
Dense board layouts for telecom systems
Reliable thermal performance for industrial hardware
Cross Reference
Engineers sometimes evaluate the following devices as alternatives depending on availability and system requirements:
XC5VTX150T
XC5VTX240T-2FFG1759
XC5VLX330
XC6VLX240T
When replacing an FPGA, always verify:
Pin compatibility
Requisitos de velocidad
Transceiver availability
Firmware / bitstream compatibility
Virtex FPGA Family Reference
Common FPGA families used in similar applications include:
Virtex-4 Series
XC4VLX160
XC4VSX55
XC4VFX100
Virtex-5 Series
XC5VFX200T
XC5VSX95T
XC5VTX240T
Virtex-6 Series
XC6VLX240T
XC6VLX365T
XC6VSX315T
These generations gradually improve logic density, power efficiency, and serial bandwidth.
Procurement Information
En XC5VTX240T-1FFG1759I is often required for:
telecom equipment maintenance
industrial system repair
legacy FPGA platform support
LXB Semicon supplies a wide range of FPGA Xilinx devices from stock to help engineers and purchasing teams maintain existing hardware platforms.
For availability, lead time, or alternative device suggestions, contact the LXB Semicon sales team.
