Технические характеристики
Производитель: STMicroelectronics
Device Type: Automotive 32-bit Power Architecture microcontroller for vehicle body and chassis control
Core Parameters
Processor core: Single e200z0 core
Maximum working clock: 64 MHz
Program Flash memory: 1.5 MB
Internal SRAM: 96 KB

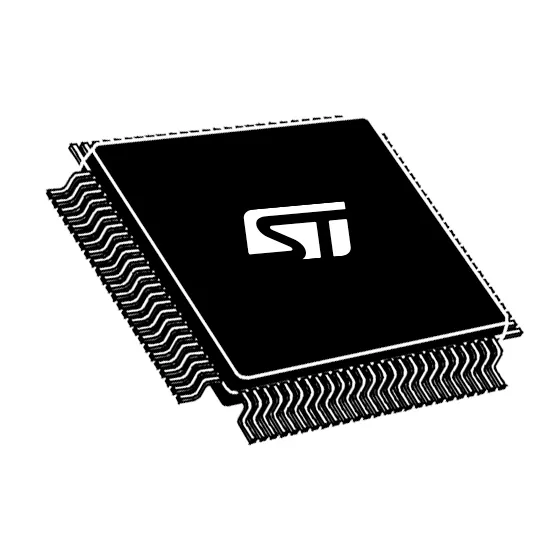

Package: LQFP100
Nominal operating voltage: 3.3 V
Working temperature range: -40 ℃ ~ +125 ℃
Automotive certification: AEC-Q100 Grade 1
Onboard Peripherals
Multi-channel 12-bit high precision ADC
Multi-purpose timer modules supporting PWM generation
Multiple CAN and LIN communication controllers for in-vehicle bus transmission
Abundant configurable GPIO ports
Independent hardware watchdog timer
Clock monitoring and system reset modules
Main Features
Optimized power consumption design for vehicle standby scenarios
Built-in hardware error detection mechanism to guarantee operational stability
Strong anti-electromagnetic interference capability adapting to complex vehicle electrical environment
Flexible clock configuration schemes
Memory protection structure prevents abnormal program access damage
Cost-effective peripheral combination suitable for mainstream automotive electronic control tasks
Типовые применения
Car body control modules
Door and window electronic control units
Lighting system controllers
Chassis auxiliary electronic equipment
Commercial vehicle cabin electrical management systems
