| Mfr 부품 | 시리즈 | 제조업체 | 패키지 | 토폴로지 | 제품 상태 | 마운팅 유형 | 스위칭 주파수 | 기능 | 입력 전압 | 출력 전압 | 출력 개수 | 작동 온도 | 출력 유형 | 출력 전류 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AD8561ARZ-REL7 | 비교기 | 아날로그 디바이스 | SOIC-8 | N/A | 활성 | 표면 실장 | N/A | 고속 비교기 | 5 - 10 V | N/A | 1 | -40°C ~ +125°C | 디지털 | 50 mA |
사양
Basic Information
Manufacturer: Analog Devices (ADI)
Category: High Speed Single Voltage Comparator

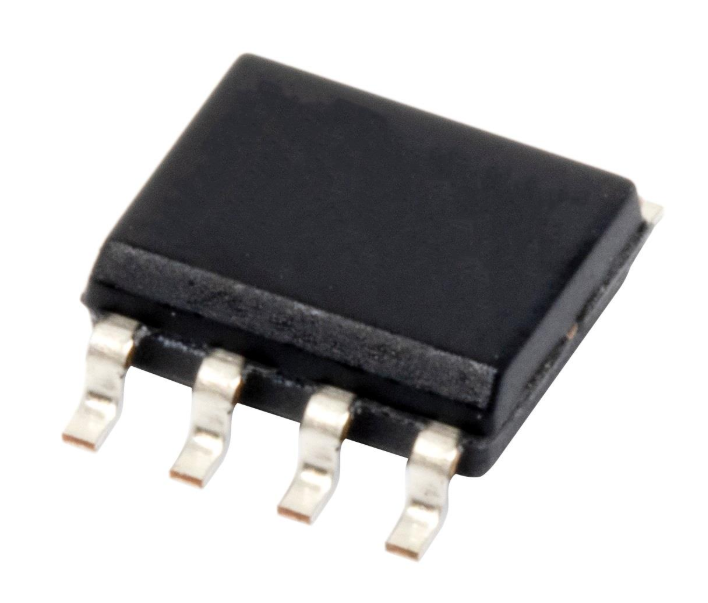

Package: SOIC-8 (8-lead narrow small outline surface mount package)
Packaging Form: REEL7 standard long tape reel packaging
Compliance: RoHS compliant
Operating Temperature Range: -40℃ ~ +85℃
Core Electrical Parameters
- Channel Quantity: 1 independent comparator channel
- Propagation Delay: Typical 7ns, maximum 9.8ns (5V supply)
- Power Supply Mode
- Single supply: 3V ~ 10V
- Dual supply: ±1.5V ~ ±5V
- Input Offset Voltage (Max): 7mV @ 5V operating voltage
- Input Bias Current (Max): 6μA
- Quiescent Supply Current (Typical): 4.7mA
- CMRR (Common Mode Rejection Ratio): Typical 85dB
- PSRR (Power Supply Rejection Ratio): Typical 65dB
- Output Level: TTL/CMOS compatible differential output
- Built-in latch function available, no shutdown pin
주요 기능
- Ultra-fast response speed, matched rise/fall delay, ideal for clock data recovery circuits
- Wide common-mode input range, covering negative supply rail
- Low power consumption compared with equivalent high-speed comparators
- Pin-compatible with LT1016 for direct replacement upgrade
- Stable timing performance across full industrial temperature range
일반적인 애플리케이션 시나리오
Clock recovery circuits, high-speed signal threshold detection, communication line receivers, automatic test equipment (ATE), high-speed data acquisition systems, pulse shaping circuits, power supply overvoltage/overcurrent fast protection, phase detection modules
Package & Logistics
Standard reel packing quantity: 2500pcs/reel
Mounting: SMD surface mounting device
