| 모델 P/N | 시리즈 | 실험실/CLBS 수 | 속도 등급 | 논리 요소/셀 수 | 총 램 비트 | I/O 수 | 전압 - 공급 | 마운팅 유형 | 작동 온도 | 패키지 / 케이스 | 공급업체 디바이스 패키지 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XC5VFX100T-3FFG1136C | Virtex-5 FXT | 8.000,00 | -3,00 | 102400 | 8404992 | 640 | 0.95 V–1.05 V | 표면 실장 | 0 °C–+85 °C (C) | 1136-BBGA, FCBGA | 1136-FCPBGA (31×31) |

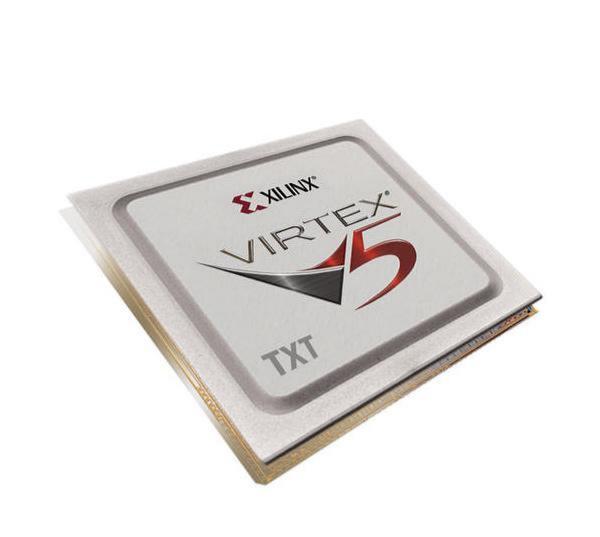

Xilinx XC5VFX100T-3FFG1136C | Virtex-5 FXT High-Speed FPGA
그리고 XC5VFX100T-3FFG1136C represents the pinnacle of performance within the Xilinx Virtex-5 FXT platform. Featuring the highest speed grade (-3) available, this FPGA is engineered for applications where timing closure is critical and latency must be minimized. Integrating a hard-core PowerPC® 440 processor and RocketIO™ GTX 트랜시버, it offers a complete, ultra-fast system-on-chip solution.
에서 LXB 세미콘, we specialize in high-speed, hard-to-find FPGAs, providing fully verified XC5VFX100T-3FFG1136C units to global aerospace, telecommunications, and high-frequency trading industries.
Technical Specifications (Performance Focus)
| 기능 | Detailed Specification |
| 논리 셀 | 102,400 |
| 속도 등급 | -3 (Highest Speed Performance) |
| Embedded Processor | 1 x PowerPC® 440 (Optimized for -3 timing) |
| GTX 트랜시버 | 16 Channels (Up to 6.5 Gbps) |
| DSP48E 슬라이스 | 448 |
| Total Block RAM | 8,280 Kb |
| 패키지 | FFG1136 (Flip-Chip BGA, Lead-Free/RoHS) |
| 작동 온도 | 0°C ~ 85°C (Commercial Grade) |
Why the -3 Speed Grade is Essential
In the world of FPGA design, the -3 speed grade isn’t just a number—it’s the difference between a design that fails timing and one that excels in real-time processing.
Maximum Clock Frequencies: Allows for significantly higher internal fabric clock speeds compared to -1 or -2 grades, essential for complex DSP algorithms.
Minimized Propagation Delay: Reduced Tilo and Tcko timings enable faster data paths and more robust interfacing with external high-speed memories.
Complex Logic Closure: If your design utilizes a high percentage of the 102,400 logic cells, the -3 grade provides the necessary margin to achieve timing closure without sacrificing functionality.
Key Integration Features
Hard-Core Processing: The integrated PowerPC 440 reduces the latency usually found in soft-core processors (like MicroBlaze), providing deterministic performance for real-time control.
RocketIO™ GTX: 16 transceivers enable high-throughput serial standards (PCIe, Serial RapidIO) with the cleanest signal integrity in its class.
Advanced 65nm Architecture: Optimized for low power consumption despite the high performance of the -3 speed grade.
LXB Semicon Quality & Trust (EEAT)
When sourcing a high-performance part like the XC5VFX100T-3FFG1136C, the pedigree of the supplier is as important as the silicon itself.
Authenticity Guarantee: LXB Semicon ensures 100% original Xilinx (AMD) silicon. We do not deal in refurbished or “pulled” components.
Precision Testing: Our quality control process includes marking permanency tests and intensive visual inspections to ensure factory-new condition.
Expert Technical Support: Need to know about the migration path from a -2 to a -3 grade? Our team has the expertise to support your engineering decisions.
Secure Logistics: High-value FPGAs are shipped in moisture-barrier bags (MBB) with desiccant and humidity indicator cards, following strict JEDEC standards for ESD protection.
Frequently Asked Questions (FAQ)
Q: Can I use the XC5VFX100T-3FFG1136C to replace a -1 or -2 speed grade? A: Yes, the -3 is “backward compatible” in terms of performance. It will easily meet the timing requirements of a -1 or -2 design. It is often used as a premium replacement to solve persistent timing failures.
Q: Is this part RoHS compliant? A: Yes, the FFG1136 package is lead-free and fully compliant with RoHS standards.
Q: What development environment is required? A: You will need Xilinx ISE® Design Suite 14.7. Please note that the Virtex-5 family is not supported in the Vivado® ML editions.
Request a Quote for XC5VFX100T-3FFG1136C Partner with LXB 세미콘 for reliable access to the highest-performance Xilinx silicon. Contact us today for stock availability and competitive pricing.
